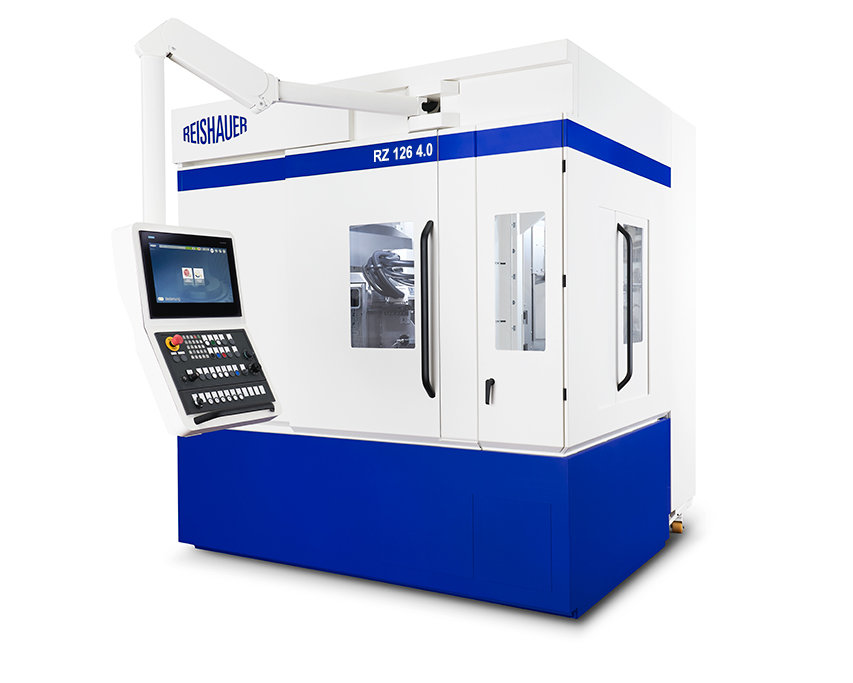

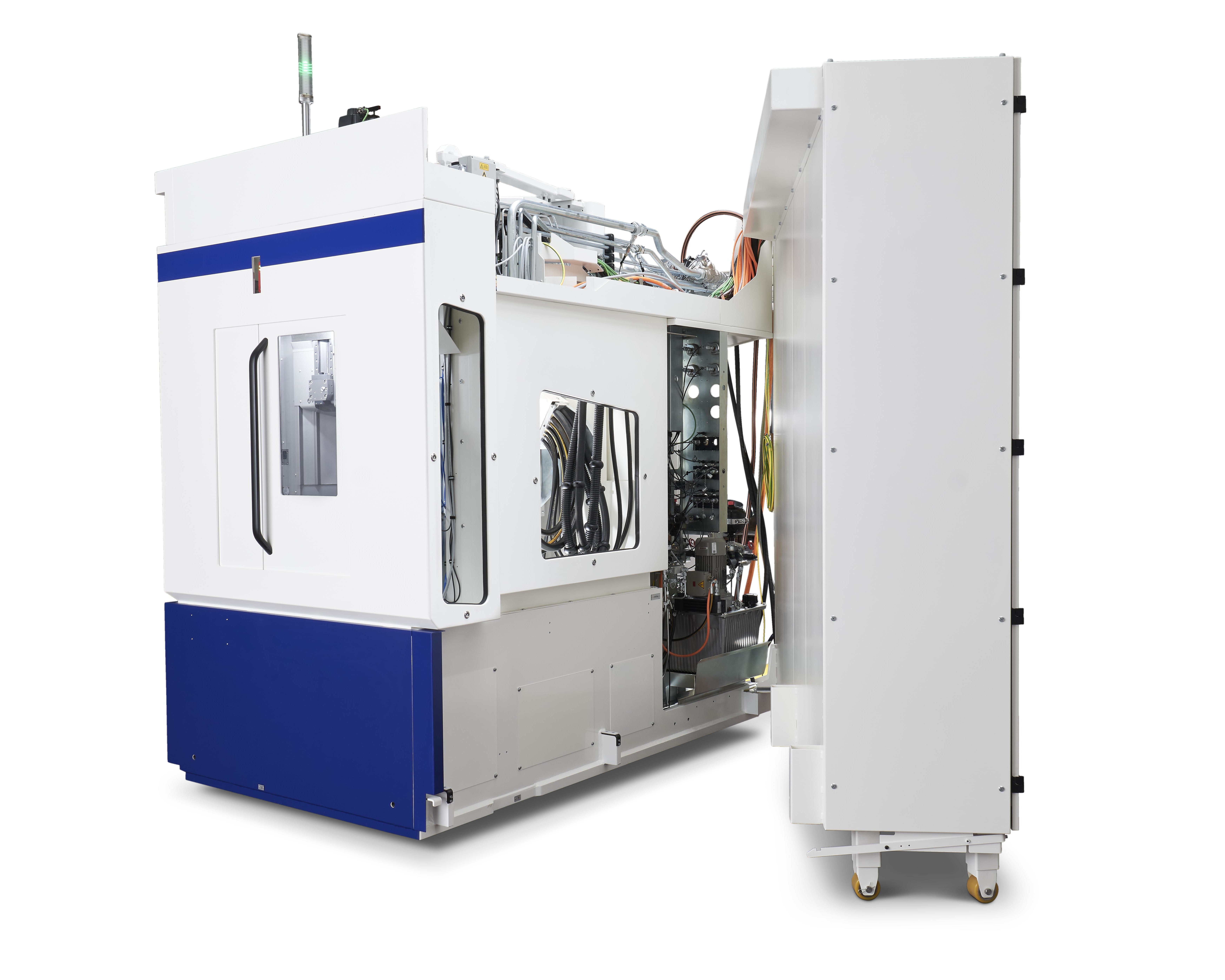

Continuous Generating Gear Grinding Machine RZ 126 4.0

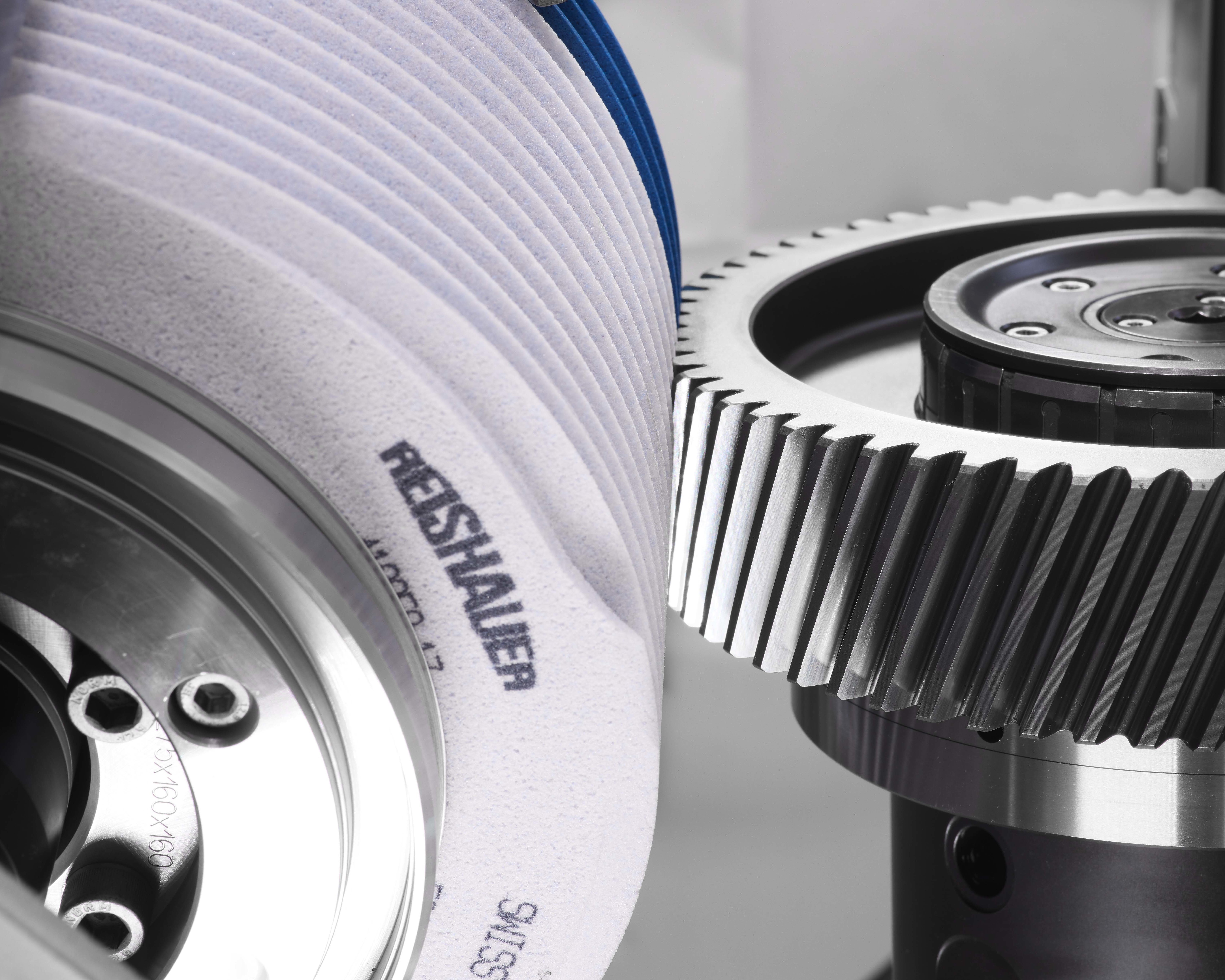

100 m/s Grinding speed (max.), outstanding grinding technology and a maximum of flexibility
Regarding productivity, the RZ 126 4.0 grinding machine sets industry standards in the high volume production of gears, and in its field, is the fastest machine on the market.
Grinding speed (max.) 100 m/s
The RZ 126 4.0 builds and expands on Reishauer‘s successful twin-spindle machine concept. The machine combines the speed and productivity of the RZ 60 4.0 with the flexibility and the latest grinding technologies of the RZ 160 4.0 und RZ 260 4.0.

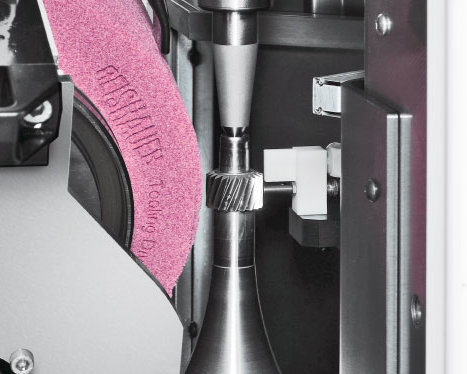

Flexibility and Productivity
The design principle embodies the uncompromising reduction of non-productive time by the twin-spindle technology, the short reaction time of the spindle drives and the high grinding speeds.
Working Range
Dimensions that may differ can be verified upon request.
Workpiece diameter
0 – 126 mm
Module range
0.5 – 4 mm
Swivel angle (grinding head)
± 48°
Grinding stroke (max.)
180 mm
Shaft length
490 mm
Workpiece rpm (max.)
3000 min⁻¹
Workpiece weight (incl. workholding) (max.)
30 kg
Operating speed
100 m/s
Grinding wheel outside diameter (max.)
275 mm
Grinding wheel width
125 / 160 mm
Diameter of dressing tools
123 / 140 mm
Dimensions (width x depth x height)
2880 x 2310 x 2920 mm
Machine weight (incl. W-axis)
9600 kg
Hardware Options (Extract)
Pivoting dressing unit (C4-Axis)
CNC tailstocks (W1- & W2-Axis)
Technology Options (Extract)
Grinding of asymmetric gear profiles
Polish grinding
Reishauer TwistControl Grinding – generation of specific twist
Grinding of conical gears (beveloid gears)
Grinding of non-involute gears
Two double meshing sensors for stepped pinions
Integrated oil spinning
Reishauer ECO-Mode
Control
Siemens Sinumerik 840D Solution Line
Reishauer PrecisionDrive
Reishauer operating software
- Low Noise Shifting reduces the noise generation in transmissions
- Polish grinding improves the performance of transmissions
- Twist Control Grinding allows deliberate modification of contact patterns of gear teeth
- Generating gear grinding of asymmetrical designs
- High speed grinding at 100 m/s reduces grinding times and the risk of grinding burns

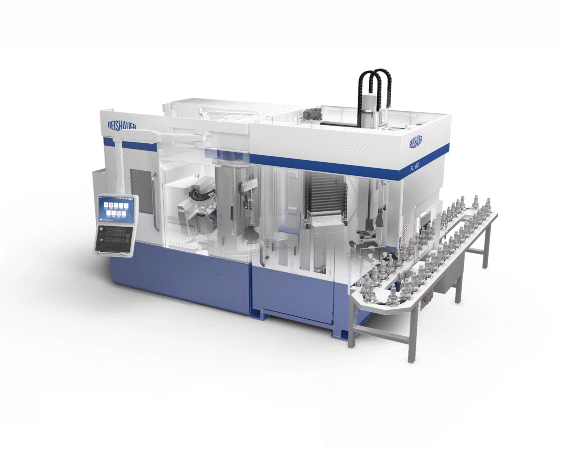

Part Loader System Reishauer RL x60
Reishauer’s own automation concept is an integral part of its performance portfolio. This part loading automation keeps pace with the machines fast cycle times, productivity and availability. Automation and machine are in perfect synch as they share their place of...
Loader System Reishauer RCL x60
Loader systems offer the customer functions that supplement the production process before and after the grinding operation. Integrated monitoring and ejection functions ensure a consistently high quality of output. These features help our customers to organize production...
